Permalloy
Permalloy is the
material with diversifying properties able to obtain its
own magnetic property depending on the production
technology as the raw material of alloy of outstanding
high permeability, whose main components are Fe and
NE.
PC (80% Ni
content)
PE (50% Ni
content)
PB (45% Ni
content)
PD (36% Ni
content)
Material
Specifications
| Material grade |
Nickel content |
Material
thinkness(mm) |
Application |
| PB |
45% |
0.30
0.35 |
It's suited for Yokes or Core of DC
transformers and magneticshielding
cases. |
| PC |
80% |
0.10
0.15
0.20
0.35 |
It's widely used in the Cores of
communication transformers and magnetic heads, and
as a meterials for magnetic shielding
cases. |

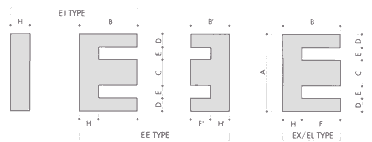

EI TYPE
| TYPE |
t |
A |
B |
C |
D |
E |
F |
H |
| EI-14 |
0.35 |
14 |
8.8 |
3.5 |
1.75 |
3.5 |
7 |
1.85 |
| EI-16 |
0.35 |
16 |
12 |
4 |
2 |
4 |
10 |
2 |
| EI-186 |
0.35 |
19.08 |
6.35 |
4.77 |
2.835 |
4.77 |
6.35 |
2.4 |
| EI-19 |
0.35 |
19 |
12.5 |
4.75 |
2.375 |
4.75 |
10 |
2.5 |
| 19(9204) |
0.35 |
19 |
12.6 |
4.75 |
2.5 |
4.75 |
10 |
2.5 |
| EI-21.4 |
0.35 |
21.4 |
11.05 |
6 |
3 |
4.7 |
8.05 |
3 |
| 21.4GAP |
0.35 |
21.4 |
11.3 |
6.3 |
3.2 |
4.35 |
8.1 |
3.2 |
| EI-24 |
0.35 |
24 |
15 |
6 |
3 |
6 |
12 |
3 |
| EI-35 |
0.35 |
35 |
24.5 |
9.6 |
5 |
7.7 |
19.5 |
5 |
ED/EL
TYPE
| TYPE |
t |
A |
B |
C |
D |
E |
F |
H |
| ED-8 |
0.15 |
8 |
10 |
2.4 |
1.2 |
1.6 |
¡@ |
2.7 |
| EL-16 |
0.2 |
16 |
16 |
4.8 |
2.4 |
3.2 |
¡@ |
2.4 |
| EL-186 |
0.35 |
19.08 |
11.15 |
4.77 |
2.385 |
4.77 |
8.75 |
2.4 |
| EL-24/25 |
0.35 |
25.4 |
19.05 |
6.35 |
3.175 |
6.35 |
¡@ |
3.175 |
EE TYPE
| TYPE |
t |
A |
B |
C |
D |
E |
F |
H |
B' |
F' |
H' |
| 16 |
0.2 |
16 |
11 |
4.8 |
2.4 |
3.2 |
8.6 |
2.4 |
5 |
2.6 |
2.4 |
| 24/25 |
0.35 |
25.4 |
12.7 |
6.3 |
3.175 |
6.35 |
9.525 |
3.175 |
6.35 |
3.175 |
3.175 |
EX TYPE
| TYPE |
t |
A |
B |
C |
D |
E |
F |
H |
| EX-14 |
0.35 |
14 |
10.6 |
3.5 |
1.75 |
3.5 |
8.8 |
1.8 |
| EX-16 |
0.35 |
16 |
14 |
4 |
2 |
4 |
12 |
2 |
| EX-19 |
0.35 |
19 |
15 |
4.75 |
2.375 |
4.75 |
12.5 |
2.5 |
| EX-20 |
0.2 |
19.6 |
14.7 |
4.5 |
3.1 |
4.45 |
11 |
3.7 |
| EX-24 |
0.35 |
24 |
18 |
6 |
3 |
6 |
15 |
3 |
| EX-19.05 |
0.2 |
19.04 |
15.9 |
4.76 |
2.38 |
4.76 |
13.5 |
2.4 |
|
|
|
